Welcome to Innovative Flexotech An ISO 9001:2008 Certified Company

Head quarter in the Ahmedabad and Manufacturing plant in Viramgam, Innovative Technical Team of 25 People. The company is a Manufacturing and market in Photopolymer plate making Equipments, Flexography plate making Equipments, Letter Press Plate making Equipment, Water wash flexo Plate making Equipment, Varnishing Plate maker, Pad Printing Plate making equipment, Label Plate making equipment, Flexo plate Making Equipments, Flexo plate Maker, Flexography, Polymer Stamp making equipment, Autotmatic Rubber Stamp Making machine, Liquid Resin Stamp making machine, Solvent Recovery System, Solvent Distillation Unit,

We undertake to offer consultancy and services for establishing turnkey projects by way of Flexo printing integration in these lines. We are into manufacturing, service of flexo printing Press and plate making equipment & always keep stock which could support the machines installed by us and the consumables of the latest variety used to ensure high productivity and profitability in these lines. Our Team Philosophy, is Quality & Honesty The pursuit of excellence in all we does. Every member of the Innovative Flexotech organization remains unified in achieving these goals.

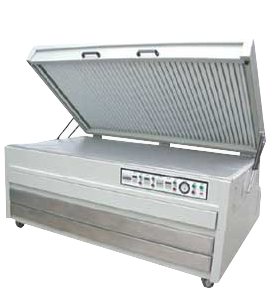

Flexography Plate Making Equipments

@A4 FL / @A3FL For Lable/Card/Pad/Stamp

	@A4 / @A3LT-for letterpress
	@A4 / @A3LR-for liquid resin
	@A4 / @A3FL-for flexography
	@A4 / @A3FB-for @FlexoBag

MODEL	UNIT	MEASUREMENT(cm)	N/W	G/W	WATT
@A4 FL	EXPOSING+DRYING +WASHOUT + TREATMENT	760 x 650 x 400	56KG	90KG	1KW
@A3 FL	EXPOSING+DRYING +WASHOUT + TREATMENT	940 x 770x 400	85KG	125KG	1.2KW

(New modern design CAD/CNC cut body with outdoor A/C treatment / paint plus stainless steel tank all unit rust free. Warranty for ever free for first year.
High intensity original Philips lamp good for 200LPI 1% dot reproduction)

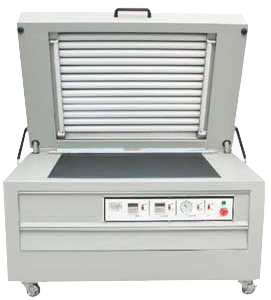

@A3SSF

	All stainless steel.
	Exposing+drying+washout+treatment.
	4 in one design very compact.
	Simple operation, best plate result

MODEL	UNIT	MEASUREMENT(cm)	N/W	G/W	WATT
@A3SSF	EXPOSING+DRYING +WASHOUT+TREATMENT	66 x80 x 108	120KG	220KG	1.0KW

@C-A2SSF

	All stainless steel.
	Exposing+drying+washout+treatment.
	With water circulation & filtration system.
	Simple operation, best plate result.

MODEL	UNIT	MEASUREMENT(cm)	N/W	G/W	WATT
@C-A2SSF	EXPOSING+DRYING +WASHOUT+TREATMENT	120 x 100 x 125	235KG	335KG	2.8KW

Special Features@flexo Photopolymer Plate making machine for Water Wash Flexo Plate

(Model : @C-A2SSF / @C-A3SSF / @C-A4SSF / @C-2430 / @C-3040)

Plates suitable	:	TOYOBO / Cosmolight, TORAY / Toreflex etc
For printing	:	Label, film, paper, corrugated board, paper carton, knitting bag, Tetra pak etc.

Exposure + Washout + Drying +Treatment (Light finishing) in complete set

Features of Exposure unit

Features of Washout unit

	Instant light up Philips high intensity lamps
	Unique digital timers for back/main exposure
	Excellent lamps cooling / exhausting system
	Quick vacuum drawdown pump with indicator

	High temperature water washout
	With water circulation system
	Special arrangements of brush
	With residue filtration system

Features of Drying unit

Features of Treatment unit

	Drying drawer with uniform heat distribution
	Temperature adjustable by a precise controller
	Unique air circulation and exhaustion design
	Over heat sensor for safety and protection

Chemical free operation, simple, easy and save
	Digital timer for light finishing control Philips UVC high intensity lamps equipped
	With powerful air exhausting for big size models

@2430 ET ( 24 X 30 inch )
@3040 ET ( 30 x 40 inch )
@4050 ET ( 40 x 50 inch )

Features of Exposure unit

	Instant light up Philips high intensity lamps
	Unique digital timers for back/main exposure
	Excellent lamps cooling / exhausting system
	Quick vacuum drawdown pump with indicator

Features of Treatment unit

Chemical free operation, simple, easy and save
	Digital timer for light finishing control
Philips UVC high intensity lamps equipped
	With powerful air exhausting for big size models

MODEL	UNIT	MEASUREMENT(cm)	N/W	G/W	WATT
@2430 ET	EXPOSING+TREATMENT	132 x 120 x 60	250KG	350KG	1.5KW
@3040 ET	EXPOSING+TREATMENT	145 x 114 x 76	300KG	450KG	2.5KW
@4050 ET	EXPOSING+TREATMENT	120 x 110 x 90	400KG	500KG	3.5KW

@2430 WD ( 24 x 30 inch )
@3040 WD ( 30 x 40 inch )
@4050 WD ( 40 x 50 inch )

Features of Exposure unit

	Very easy access design
	Special bristle good for all kind plates washout
	Suitable for Perc+NBA and Green chemicals
	Excellent result for 175 LPI 1% reproduction

Features of Drying unit

	Drying drawer with uniform heat distribution
	Temperature adjustable by a precise controller
	Unique air circulation and exhaustion design
	Over heat sensor for safety and protection

MODEL	UNIT	MEASUREMENT(cm)	N/W	G/W	WATT
@2430 WD	WASHOUT+DRYING	120 x 110 x 90	400KG	500KG	2.8KW
@3040 WD	WASHOUT+DRYING	130 x 130 x 100	500KG	600KG	3KW
@4050 WD	WASHOUT+DRYING	150 x 100 x 90	700KG	850KG	5KW

@2002 EDT ( 1.3 x 2.0 m )
@2001 EDT ( 1.1 x 2.0 m )
@1600 EDT ( 1.1 x 1.6 m )

Features of Exposure unit

	Instant light up Philips high intensity lamps
	Unique digital timers for back/main exposure
	Excellent lamps cooling / exhausting system
	Quick vacuum drawdown pump with indicator

Features of Drying unit

	Drying drawer with uniform heat distribution
	Temperature adjustable by a precise controller
	Unique air circulation and exhaustion design
	Over heat sensor for safety and protection

Features of Treatment unit

Chemical free operation, simple, easy and save
	Digital timer for light finishing control Philips UVC high intensity lamps equipped
	With powerful air exhausting for big size models

MODEL	UNIT	MEASUREMENT(cm)	N/W	G/W	WATT
@2002 EDT	EXPOSING+DRYING +TREATMENT	273 x 190 x 224	1800KG	2200KG	15KW
@2001 EDT	EXPOSING+DRYING +TREATMENT	230 x 175 x 103	1100KG	1300KG	9KW
@1600 EDT	EXPOSING+DRYING +TREATMENT	187 x 175 x 103	950KG	1150KG	8KW

@2002 RW ( 1.3 x 2.0 m )
@2001 RW ( 1.1 x 2.0 m )
@1600 RW ( 1.1 x 1.6 m )

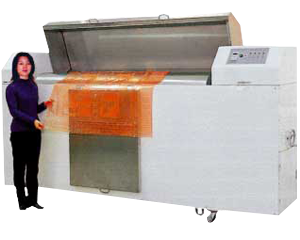

ROTARY WASHOUT UNIT

	Rotary washout to save operating room
	Operation-watching window.
	Solvent tank equipped with level indicator
	Before-finish washout exhaustion design
	Indicator for brush
	roller distance
	Wrap-a-round washout gets better results
	Both solvent spray and steep type design
	Brush distance adjustable for any thickness lates.(Inside)
	Roller rotation and brush horizontal movements

MODEL	UNIT	MEASUREMENT(cm)	N/W	G/W	WATT
@2002 RW	ROTARY WASHOUT	304 x 78 x 135	900KG	1100KG	2.5KW
@2001 RW	ROTARY WASHOUT	215 x 100 x 141	900KG	1100KG	2.5KW
@1600 RW	ROTARY WASHOUT	271 x 78 x 135	800KG	1000KG	2.5KW
